Automatic PACK Point Powerline Battery Positioning Station 5×10 - 7Pa M3/S

Automatic PACK Point Positioning Station Of Lower Box Body

Product Description:

Power Battery Production Line - Automatic PACK Point Positioning Station Of Lower Box Body

Features

  • Maintain the stability of gas composition in the test area.
  • Ensure the stability of the testing process.
  • The residual hydrogen and nitrogen component after detection are pump out of that detection area.
  • The direction of exhaust pipeline of the unit can be planned and configured according to the actual situation of plant LAYOUT.

Standard configuration

  • Parts: equipment frame, top flange cover, frame shield, safety light curtain, protective fence, curtain, foot cup, etc.
  • Interactive part: 10-inch touch screen, cantilever box
  • Slide table part: slide table base plate, tooling compatible positioning seat, linear guide rail and slider, slide table in and out cylinder, slide table limited positioning mechanism, etc.
  • Exhaust unit, hydrogen solubility detector and gas storage tank

Technical Parameters:

Power Battery Production Line Technical Parameters
ParameterValue
SortTest Series
NameAutomatic PACK Point Positioning Station Of Lower Box Body
Equipment Size1070*700*1470mm
Response Time0.7 seconds
Leak Rate Display Range1x10-2 - 1x10-7 Pa·m3/s
Detection Accuracy5x10-7 Pa·m3/s

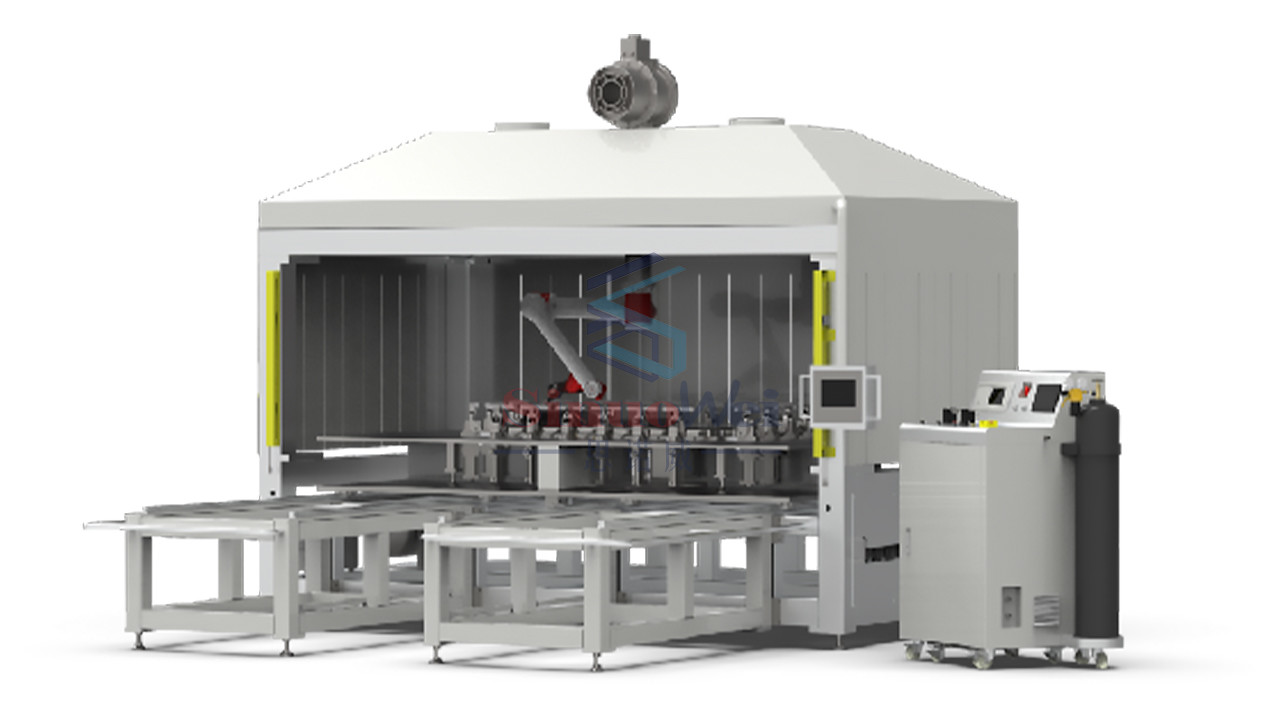

Machine Show:

Automatic PACK Point Powerline Battery Positioning Station 5×10 - 7Pa M3/S
